Alpinestars Tech-Air Off-Road Airbag System

ttRiding Modes:

tt
• tttThe world’s first dedicated off-road airbag system with 3 Riding Modes and user-replaceable gas canistersttt
  tttt
  • tttttEnduro Mode: ​Optimized for low and medium speeds on trails and other natural terrainttttt
    ttttt
    tttt
  tttt
  • tttttRally Mode: Optimized for fast, wide-open off-road rally or desert action
  tttt
  • tttttStreet Mode: Optimized for asphalt roads including situations in which the rider’s stopped motorcycle is hit by another vehicle
  ttt
  tt
t

ttElectronics System:

tt
• tttSelf-contained, standalone system with an integrated, certified lithium-ion battery
tt
• ttt3 accelerometers (1 triaxial accelerometer) and 3 gyroscopes (1 triaxial gyroscope) are integrated in the Electronic Control Unit (ECU) to provide the best crash monitoring performance and active airbag protection in a variety of dynamic off-road riding scenarios
tt
• tttECU is seal-protected within the vest to ensure all-weather performance and the vest and componentry are certified to function between -10°C and 50°C
tt
• tttFully-charged battery life of 30 hours and a recharge time of approximately 4 hours; charging the battery for approximately 1 hour will provide approximately 8 hours of riding time use
tt
• tttLED Display features an integrated USB-C charging port for convenient and easy charging of the system
t

ttProtection & Safety:

tt
• tttProven to be more than twice as protective as passive impact protectors
tt
• tttFIM Cross Country Rally Regulations Homologated for race use
tt
• tttFully certified for up to 4 airbag deployments before having to replace it, providing the airbag hasn’t been damaged in one of the first 3 deployments
tt
• tttNeck protection is provided by the airbag inflating around the neck in compliance with the FIM regulations
tt
• tttAdditional front padding on the arms and chest for enhanced roost protection
tt

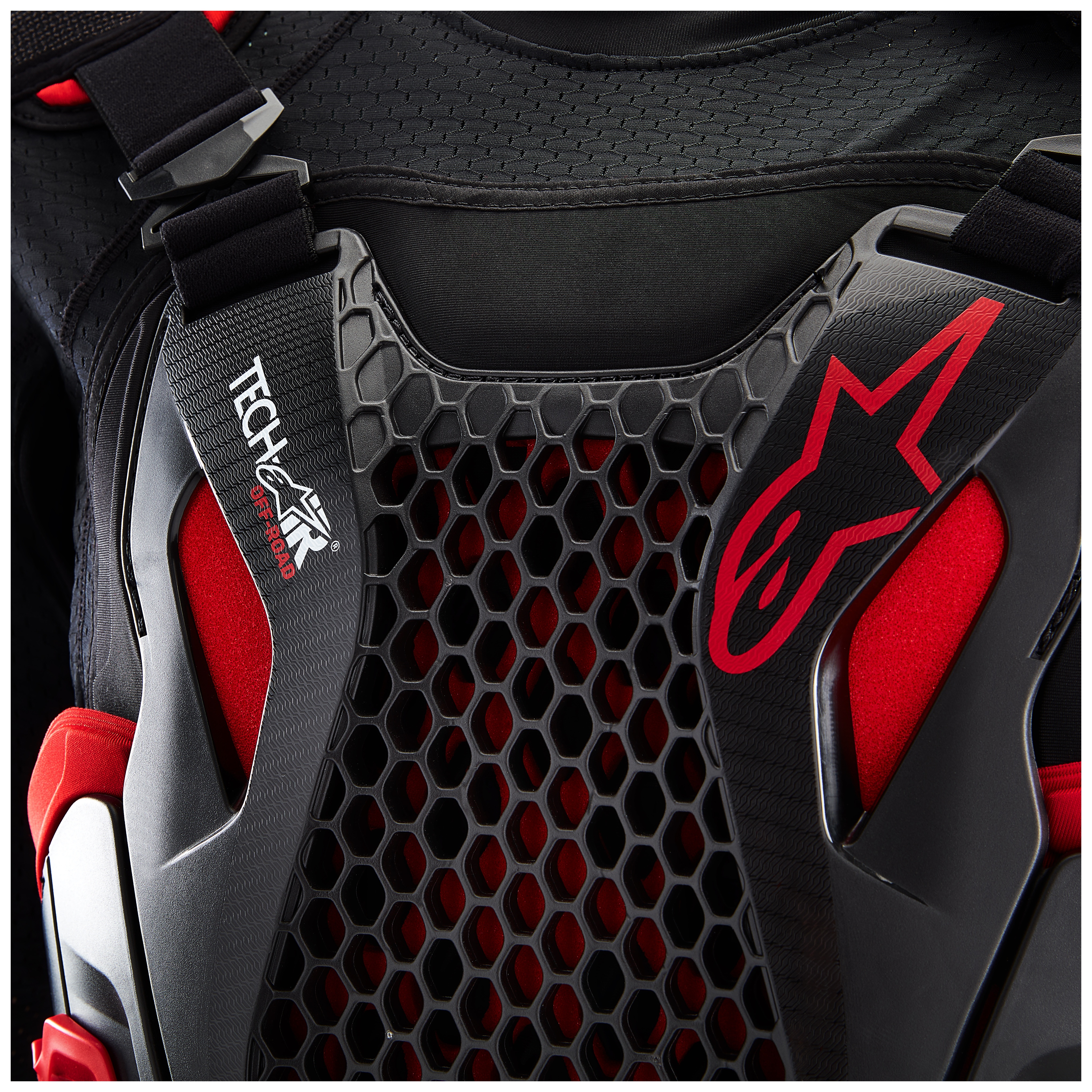

• tttIntegrated chest and back protectors feature Nucleon CELL Technology which is light, flexible and highly ventilated
tt
• tttPassive chest protector is certified to CE Level 2
tt
• tttPassive back, elbow and shoulder protectors are certified to CE Level 1
tt
• tttECU has been homologated to ECE R10 04 which ensures the unit’s electromagnetic integrity and stability
tt
• tttCE certified Class C under garment
tt
• tttNot compatible with Alpinestars Bionic Neck Support (BNS) nor any other neck protectors
t

ttOperation:

tt
• tttActivate and deactivate automatically by zipping/unzipping
tt

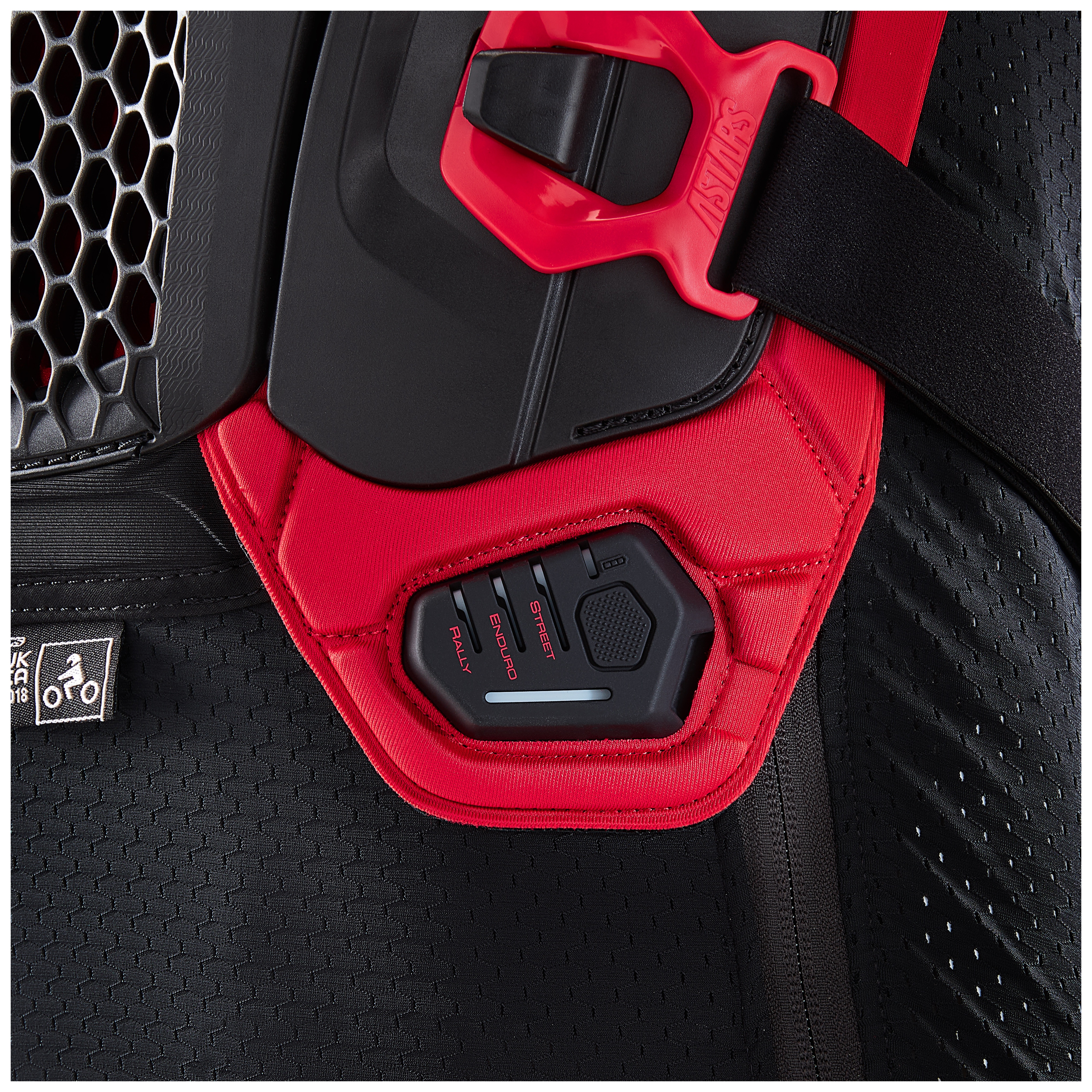

• tttRiding Modes are easy to navigate while on the move via the LED Display located on the front of the system, or via the Tech-Air app
tt
• tttSystem’s operational status, battery status and My Ride Trip recording can be accessed via Bluetooth on the Tech-Air app
tt
• tttEasily update firmware when improved crash-detection algorithms are released via the Tech-Air app
t

ttAirbag System:

tt
• tttAverage inflation time of 52 milliseconds (depending on the size of the airbag)
tt
• tttAirbag coverage on chest, back, shoulders and neck provide upper body protection
tt
• tttDual charge capability means that with two full gas inflators, the system provides two separate airbag deployments, since only one gas inflator will deploy to inflate the entire airbag system during a crash scenario
tt
• tttQuick release cover opening allows for rapid gas inflator replacement, only available in countries where gas inflator replacement by individuals is permitted by local regulations
t

ttComfort:

tt
• tttSystem can be worn with any Alpinestars Tech-Air Ready jacket or any properly fitting motorcycle jacket
tt
• tttErgonomic design delivers exceptional comfort and freedom of movement
tt
• tttSlim fit, breathable stretch mesh construction for superior ventilation and comfort
tt
• tttLateral zipper for a better fit and ease of use
tt
• tttWide open under arm / armpit area
t

ttAdditional Features:

tt

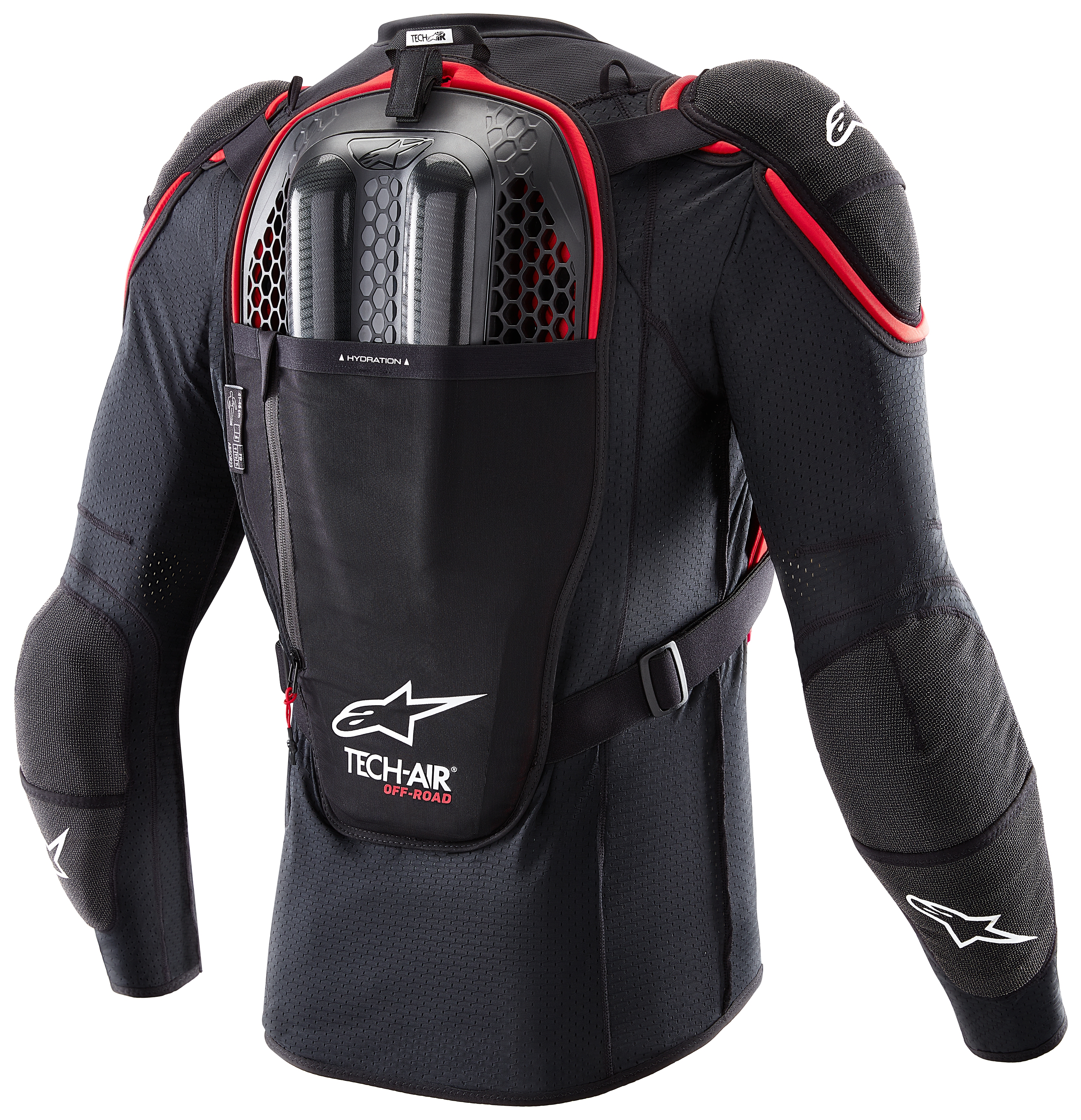

• tttRobust internal housing located in the built-in CE-certified Nucleon CELL back protector accommodates the ECU and gas inflators
tt
• tttElectronic Control Unit (ECU) and airbag are completely removable so that the protection jacket can be washed separately
tt

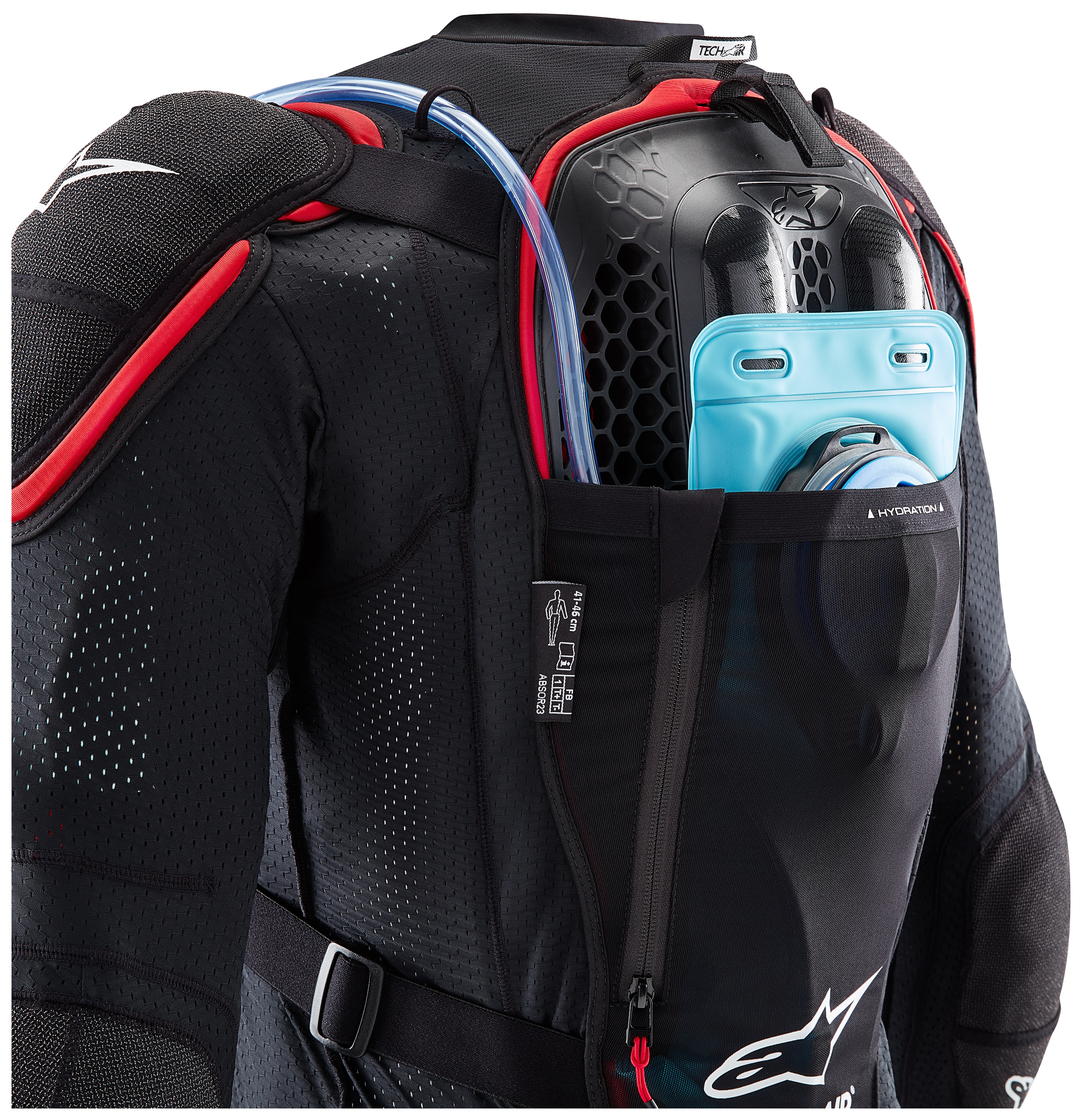

• tttCompatible with a 1.5-3 Liter capacity hydration pack (sold separately)
t

ttNote: Read the entire user manual prior to operation.

t

ttTriple Threat

ttThe path you take shouldn't be dictated by the limitations of your protective gear. The Tech-Air Off-Road's Enduro, Rally and Street modes keep you covered. Use Enduro mode for low to medium speed trails and technical off-road riding. Toggle Rally mode for those higher speed rally-style rides through the desert, dirt roads or dunes. And for when you hit the asphalt, Street mode is optimized for paved road riding and unfortunate incidents with other motorists.

ttUndercover

ttThe airbag systems of yesteryear share a common complaint - they tend to make you look like you're wearing an airbag. The Tech-Air Off-Road is designed to be worn under your jacket or jersey, offering a low profile design - similar to traditional armored off-road jackets - that hides in plain sight until you need it.

ttLet's face it. Looking good is half the battle, whether you're on the top step of the podium or cruising into town for a coffee.

ttThe Inside Scoop

ttHitting the dirt - it happens, sometimes often. The Tech-Air Off-Road features two gas canisters allowing for two successful deployments, with a quick, field-serviceable cartridge replacement system.

ttThis fully self-contained system features 3 accelerometers (1 triaxial accelerometer) and 3 gyroscopes (1 triaxial gyroscope) integrated in the Electronic Control Unit (ECU) to provide the best crash monitoring performance. In addition to airbag protection, the Tech-Air Off-Road System is equipped with level 1 passive full back and limb protection, integrated protection on the arms and a CE Level 2 passive full chest protector.

ttTotal Control

ttThe Tech-Air App enables Bluetooth connectivity, providing the ability to monitor the operational and battery status of the system. Additionally, it facilitates the analysis of your ride, including the plotting of your route on a map. With the app or integrated controller, effortlessly switch between Street, Enduro and Rally riding Modes, ensuring optimal protection during both your off-road adventures and daily commute.
